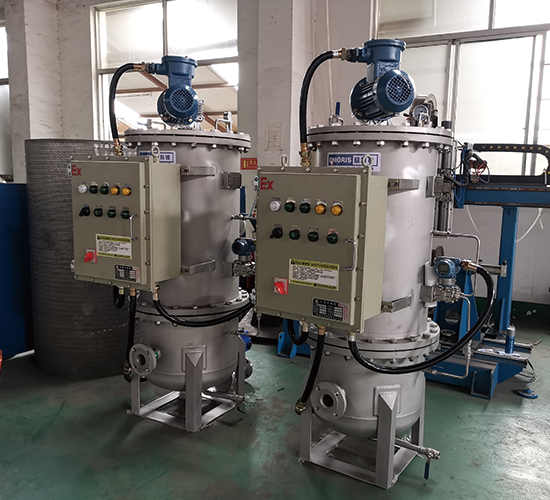

Automatic Brush Type Self Cleaning Filter

Automatic Brush Type Self-cleaning Filter provided by PrimeFiltra is applicable for harsh environments. The filtering mesh is available from 3500um ~ 5000um and the connecting port diameter van be 8’’~36’’ for different requirements.
The process of self-cleaning is started by a differential pressure switch that monitors the pressure between the filter inlet and outlet at all times. Normally the set value of the differential pressure switch is 0.5Bar (7psi).

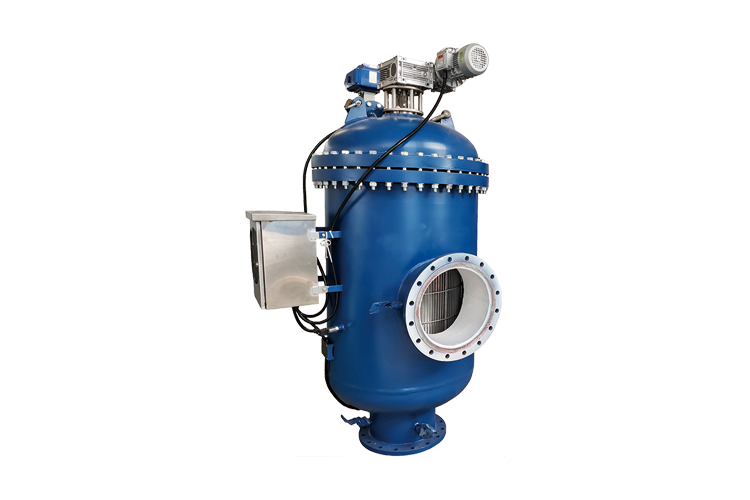

Automatic Brush Type Self Cleaning Filter

Product Description

PrimeFiltra supplys Brush Type Automatic Self-cleaning Filter that can be used for pipe DN25 ~DN900. With the advantages of continuous flow, easy maintenance and safe operation, brush type automatic self-cleaning filter is widely used in various industries.

Brush Type Automatic Self-cleaning Filter is applicable for harsh environments. The filtering mesh is available from 3500um ~ 5000um and the connecting port diameter van be 8’’~36’’ for different requirements.

The process of self-cleaning is started by a differential pressure switch that monitors the pressure between the filter inlet and outlet at all times. Normally the set value of the differential pressure switch is 0.5Bar (7psi).

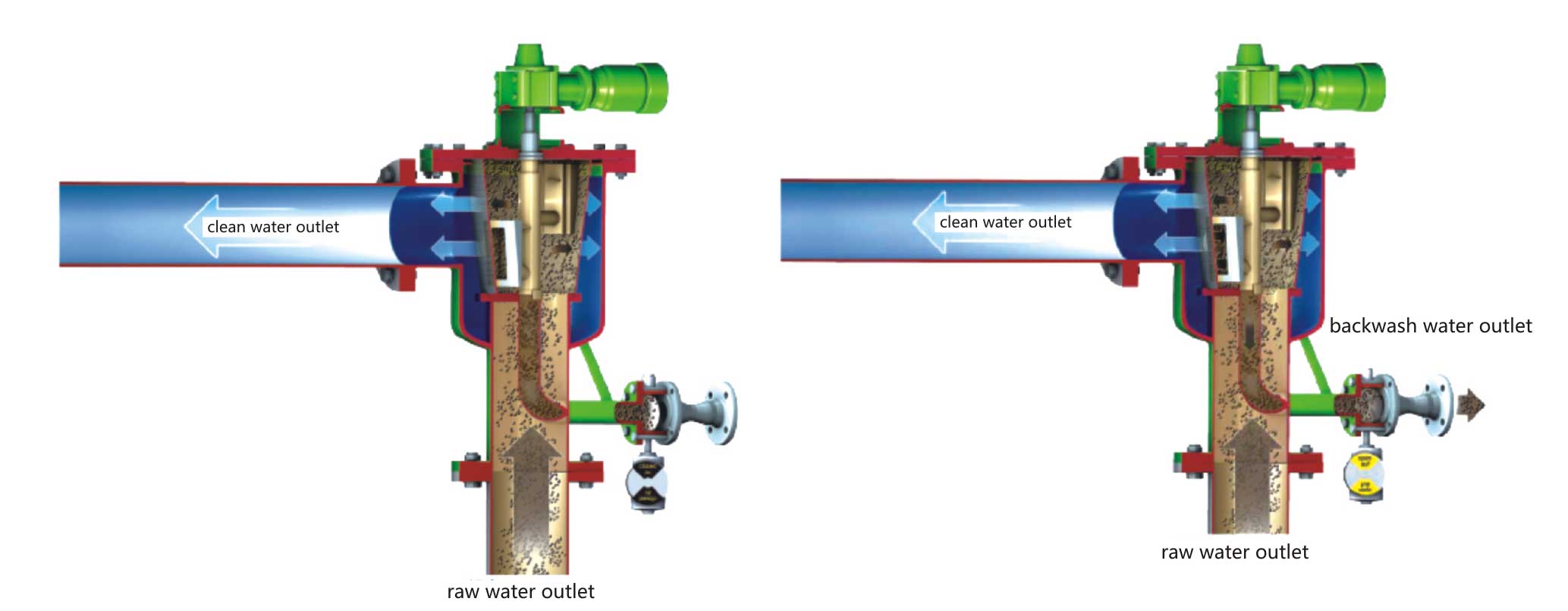

Working Principle

When the differential pressure reach the set value, the filter starts the process of self-cleaning: the drain outlet located on the top end of filter will open and the motor drives the cleaning brushes to carry out axial cleaning, by which the impurities are brushed down and discharged by the water flow to the drain outlet.

The whole process of self-cleaning takes about 15 ~ 60 seconds, and during the process of self-cleaning, the filtration system is work continuously.

Operation of the brush type automatic self-cleaning filter is controlled by the equipped intelligent control system.

Product Features

1.Continuous Flow Filtration: small water volume for cleaning, which is about 5% of the filtering volume; cleaning time is 15~60 seconds; flow of the whole system is continuous.

2.High Filtration Accuracy: the accuracy is between 100~2000um, filter mesh with various accuracy is available for your choice.

3.Large Effective Filtration Area:the effective filtration area is more than 8 times the entrance area.

4.Reliable Cleaning: there are a variety of control methods: manual, pressure difference, time, PLC, etc.

5.Easy Installation: available of various structural forms: vertical, horizontal, Y type, etc. for various pipeline condition.

6.Long Service Life: the design service life of equipment is more than 10 years; only regular maintenance required , low manual maintenance cost.
